Color Modulation for Height Mapped Surface Texture

Height mapped surface may have an added color modulation map allowing varying color tones to be applied across the surface.  Color modulation is defined as surface texture map _RGB * color modulation map _RGB

To apply color modulation map select a height mapped surface as Surface A, then choose and set color modulation map from the Texture dialog.

Note: Color modulation map uses same texture coordinates as height map

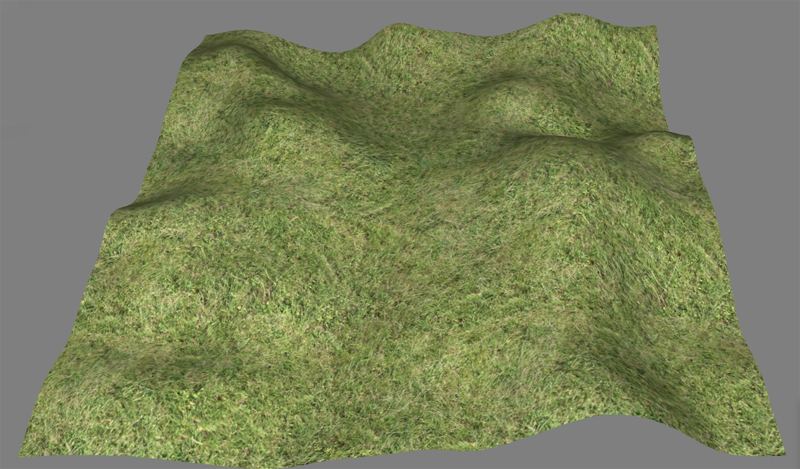

Example height mapped surface


Color Modulation Map

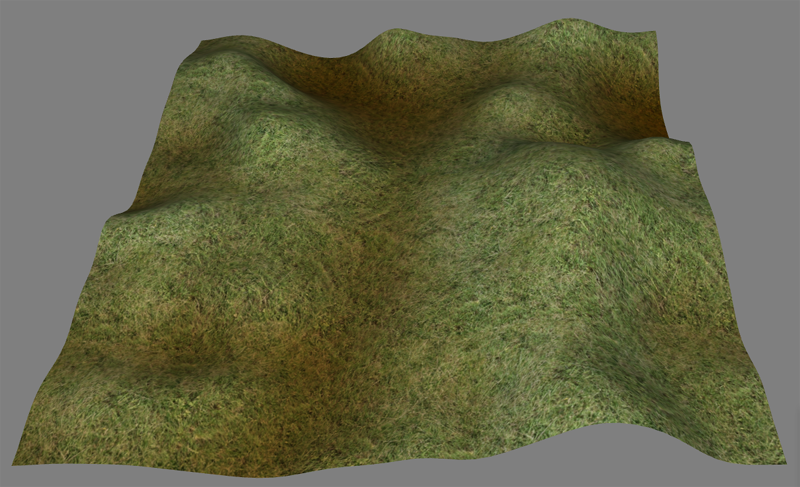

Color Modulation map applied to height mapped surface

Visual 3D Modeler User's Guide    Rev 1.4
